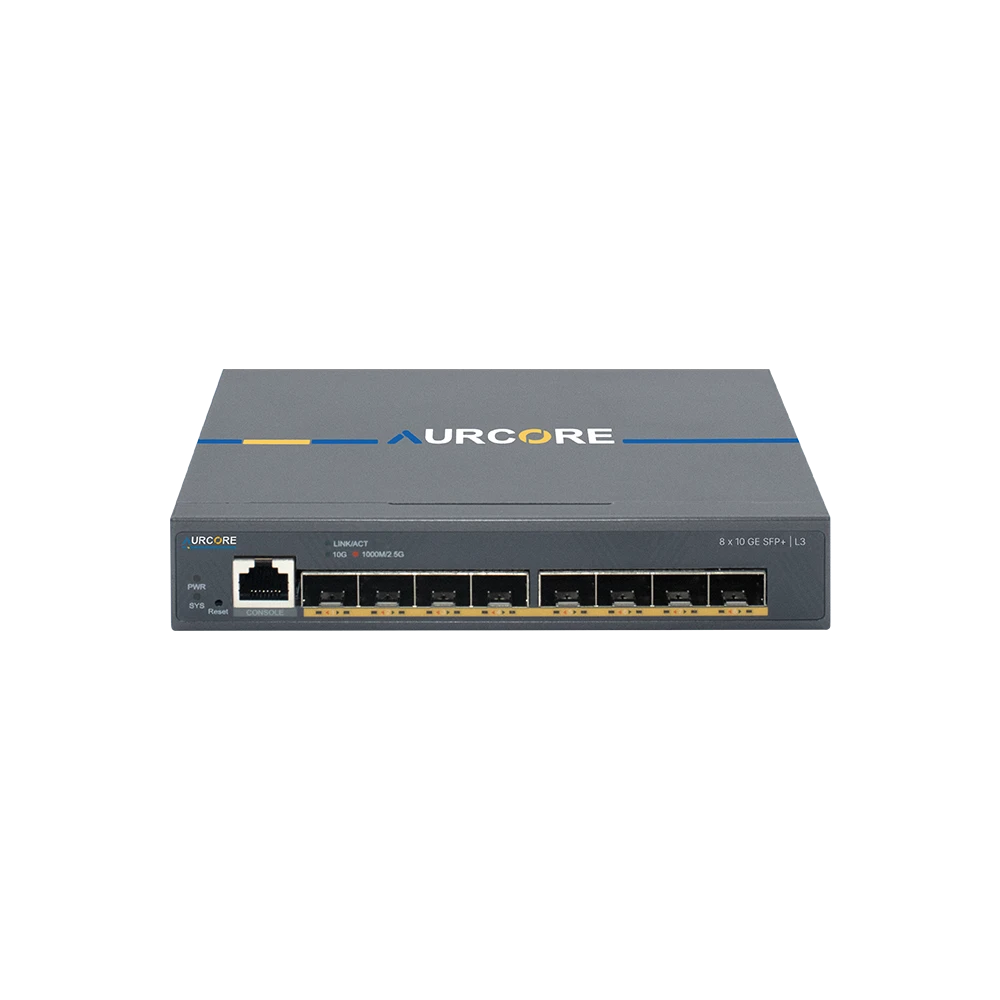

AES4202 | 8 x 10 GE SFP+, L3

Overview
The AES4202 is a robust, enterprise-grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and centralized control through AURC-NOS using ACC & ACN platforms.

Whether deployed in structured enterprise settings, the AES4202 delivers consistent performance, simplified wiring, and resilient operation. Its surge protection, and flexible uplink options make it a versatile backbone for connecting critical devices across distributed infrastructures.

Specifications
Spec
Detail
Interface
8 x 10 GE SFP+ | L3
Management Port
1 x Console Port
Chipset
Realtek
Mac Address Table
16 K
Packet Forwarding Rate
119.04 Mpps
Switching Capacity
160 Gbps
Flash
32 MB
Memory
512 MB
Power Supply
24 W
Power Consumption
Idling：115Vac/60Hz  7.25W
Idling：230Vac/50Hz  6.93W
Full load：115Vac/60Hz  15.4W
Full load：230Vac/50Hz  15.3W
Operating Temperature
0 °C – 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C – 70 °C (-40 °F to 158 °F)
Surge Protection
Differential mode ±1KV, Common mode ±2KV
Electrostatic Standards
Contact ±6V, Air ±8KV
Dimension(L*W*H)
6.61" × 3.70" × 1.26" (1U Height)
Installation
Desktop Mount
Accessories
 Rubber Feet *4, DC Adapter *1, Console Cable *1

Certifications
