Overview

The AES4101 is a robust, enterprise-grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and centralized control through AURC-NOS using ACC & ACN platforms.

Whether deployed in structured enterprise settings, the AES4101 delivers consistent performance, simplified wiring, and resilient operation. Its surge protection, and flexible uplink options make it a versatile backbone for connecting critical devices across distributed infrastructures.

Specifications

Spec	Detail
Interface	8 x 2.5 GE \| 2 x 10 GE \| 2 x 10 GE SFP+ \| L3
Management Port	1 x Console Port
Chipset	Realtek
Mac Address Table	16 K
Packet Forwarding Rate	89.28 Mpps
Switching Capacity	120 Gbps
Flash	32 MB
Memory	512 MB
Power Supply	36 W
Power Consumption	Idling：115Vac/60Hz 8.83W Idling：230Vac/50Hz 8.61W Full load：115Vac/60Hz 28.1W Full load：230Vac/50Hz 27.4W
Operating Temperature	0 °C – 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C – 70 °C (-40 °F to 158 °F)
Surge Protection	Differential mode ±2KV, Common mode ±4KV
Electrostatic Standards	Contact ±6KV, Air ±8KV
Dimension(LWH)	12.99" × 9.06" × 1.73" (1U Height)
Installation	Rack Mount or Desktop Mount
Accessories	Rack Mount Kit 2, Rubber Feet 4, Screw 8, Console Cable 1, Power Cord *1

Certifications

Campus and industrial Product Certification.jpg

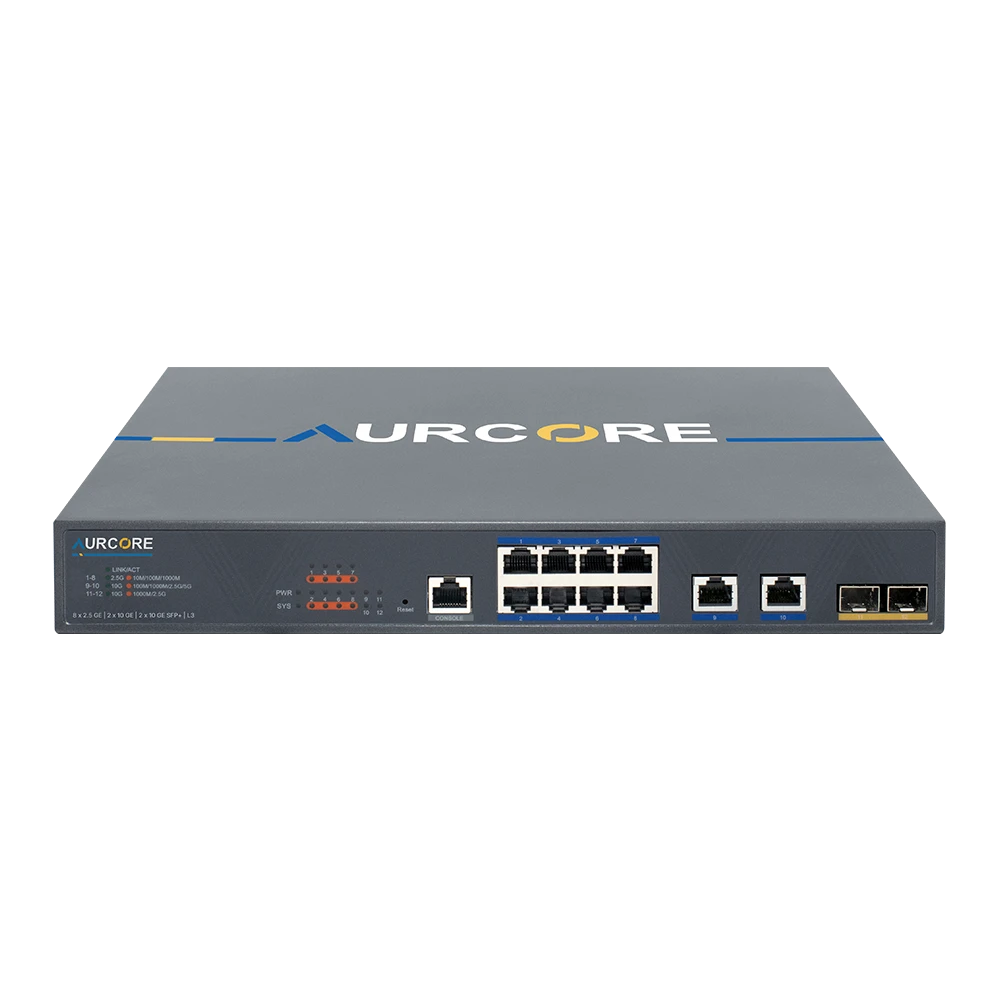

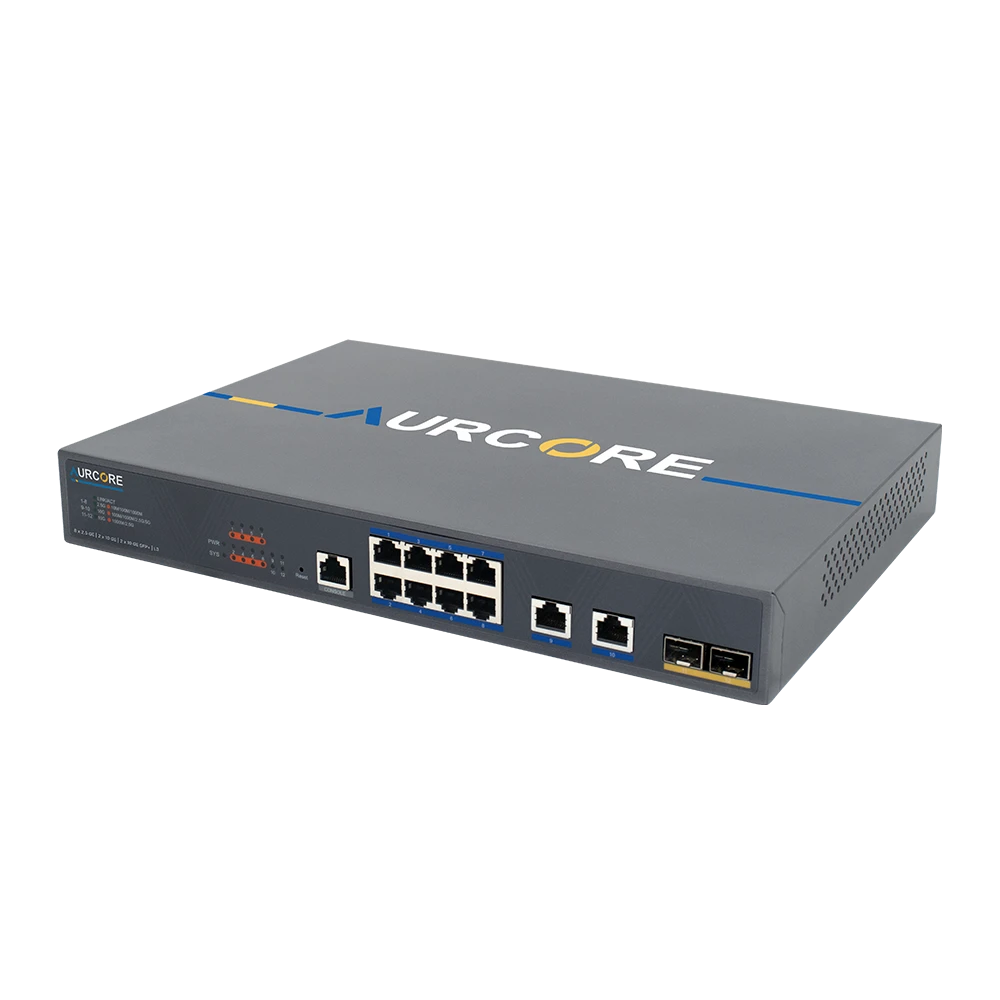

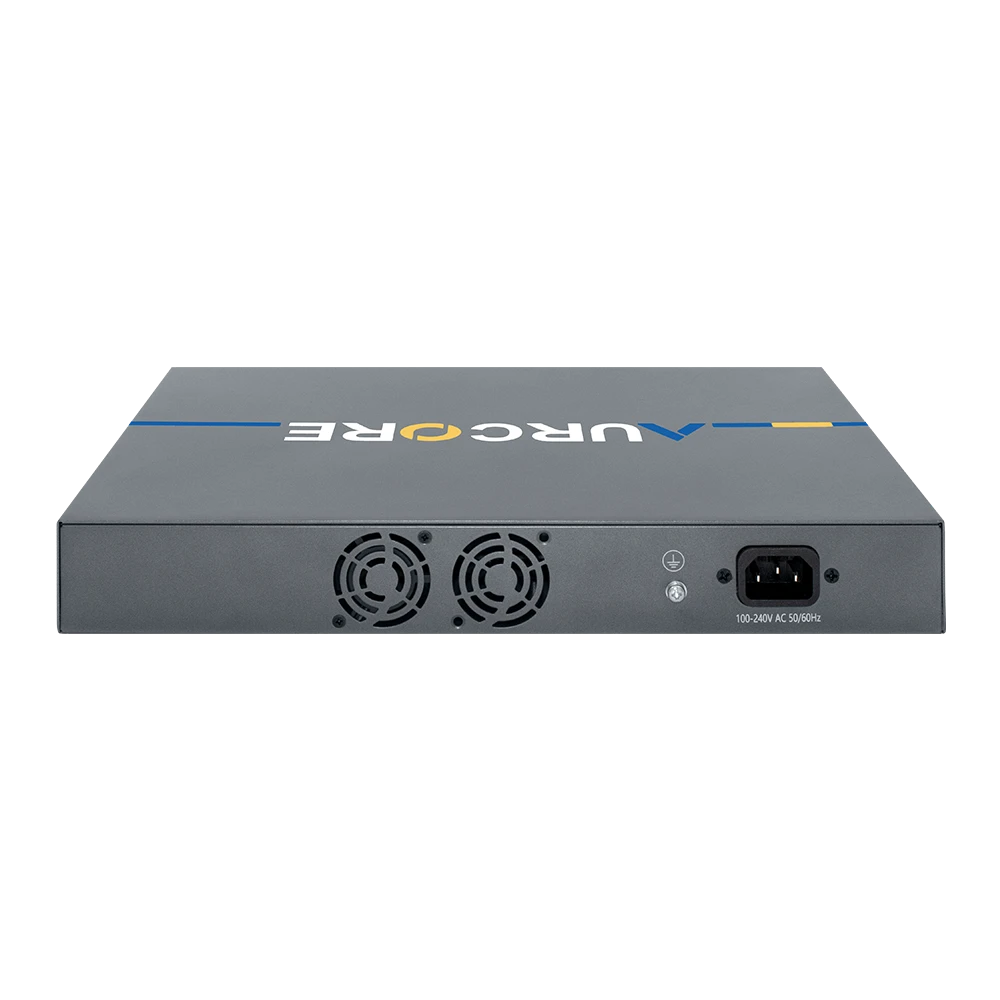

AES4101 | 8 x 2.5 GE, 2 x 10 GE, 2 x 10 GE SFP+, L3

Model:AES4101

Product Highlights

Compatible with mainstream AP and IPC devices

Supports Static Routing, MSTP, QoS functions

Supports OSPF, BGP, VRRP, PIM and ACL functions

Wide Temp Operation: 0°C to 40°C

Managed via Web GUI, CLI & ACC/ACN Platform
