Overview

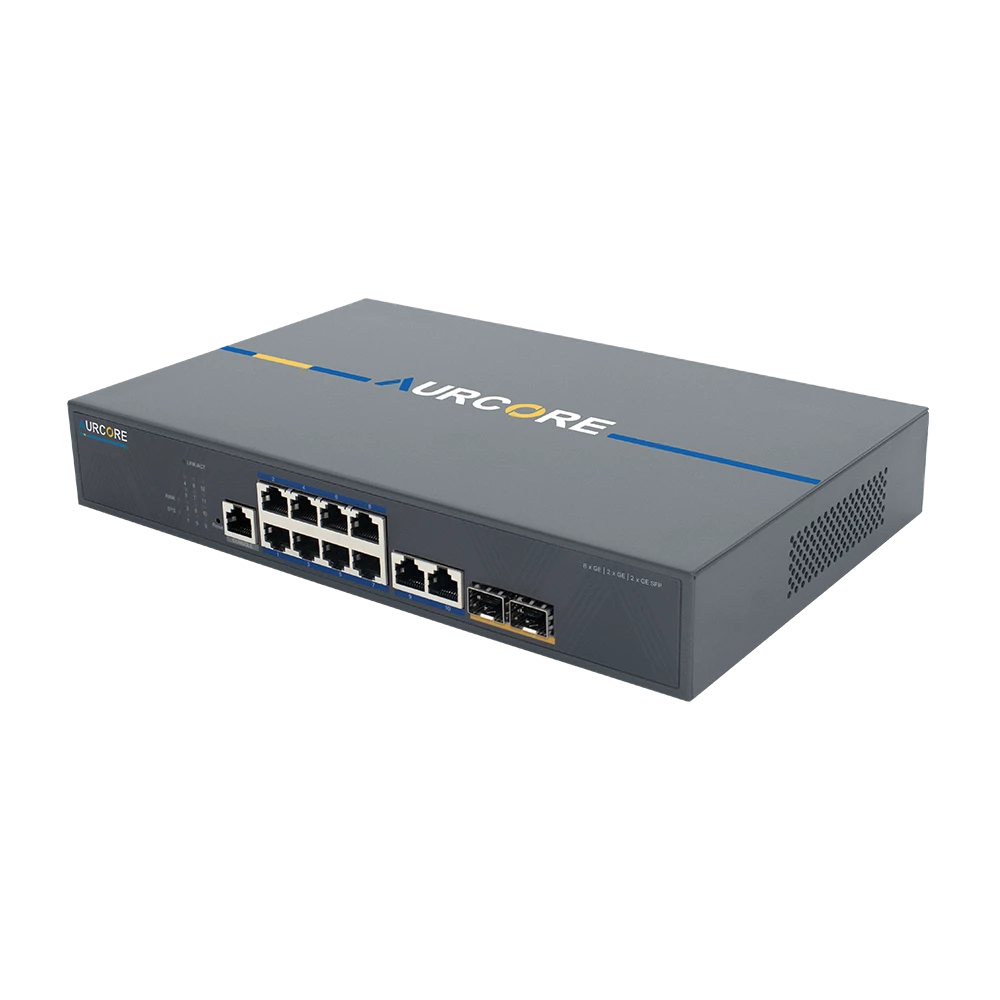

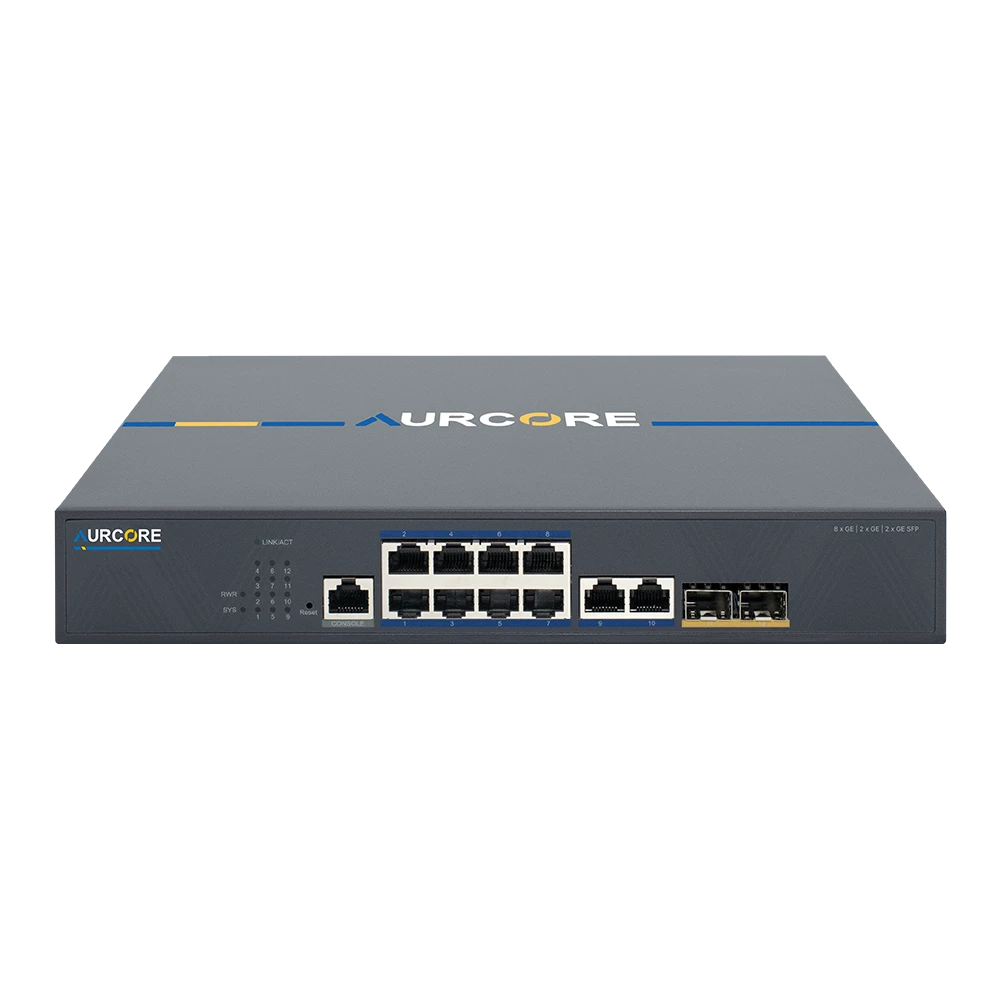

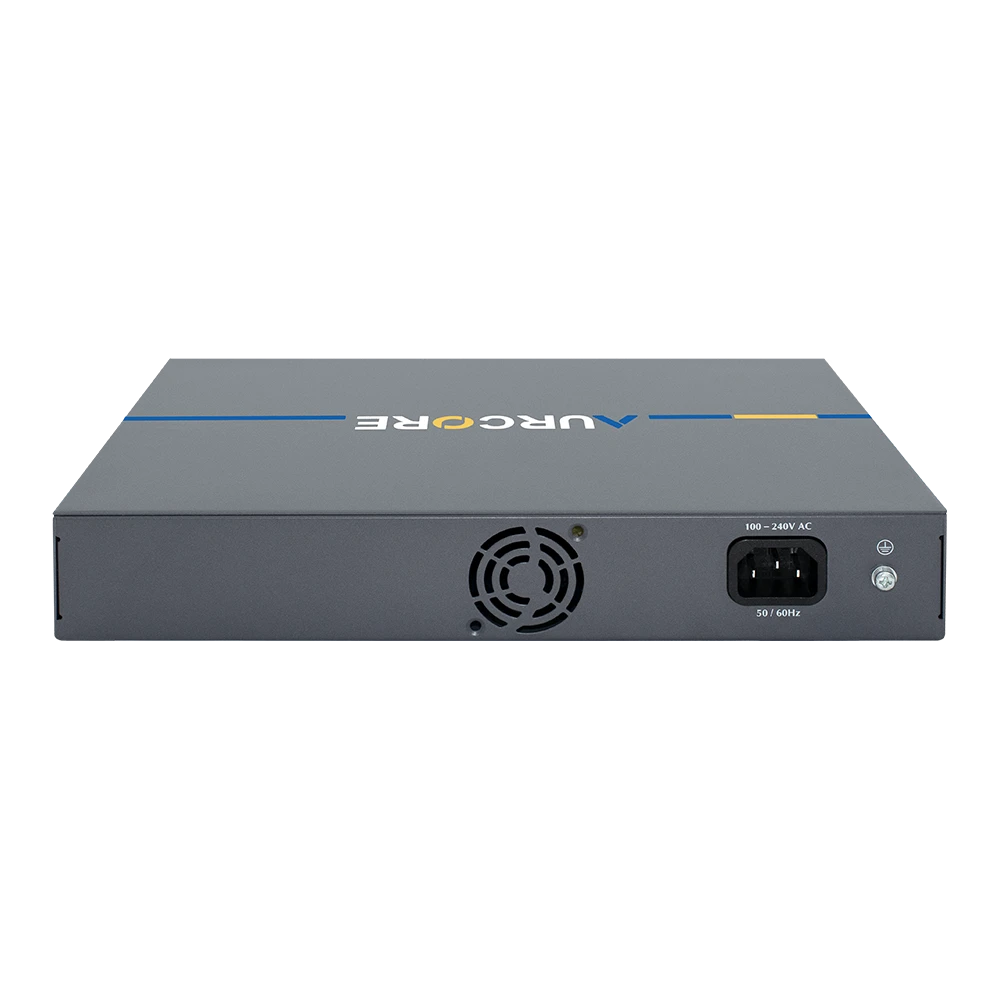

The AES2001 is a robust, enterprise-grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and centralized control through AURC-NOS using ACC & ACN platforms.

Whether deployed in structured enterprise settings, the AES2001 delivers consistent performance, simplified wiring, and resilient operation. Its surge protection, and flexible uplink options make it a versatile backbone for connecting critical devices across distributed infrastructures.

Specifications

Spec	Detail
Interface	8 x GE \| 2 x GE \| 2 x GE SFP
Management Port	1 x Console Port
Chipset	Realtek
Mac Address Table	8 K
Packet Forwarding Rate	17.85 Mpps
Switching Capacity	24 Gbps
Flash	32 MB
Memory	128 MB
Power Supply	12 W
Power Consumption	Idling：115Vac/60Hz 4.83W Idling：230Vac/50Hz 5.01W Full load：115Vac/60Hz 10.3W Full load： 230Vac/50Hz 10.5W
Operating Temperature	0 °C – 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C – 70 °C (-40 °F to 158 °F)
Surge Protection	Differential mode ±2KV, Common mode ±4K
Electrostatic Standards	Contact ±6KV, Air ±8KV
Dimension(LWH)	11.02" × 7.09" × 1.73" (1U Height)
Installation	Rack Mount or Desktop Mount
Accessories	Rack Mount Kit 2, Rubber Feet 4, Screw 8, Console Cable 1, Power Cord *1

Certifications

Campus Product Certification.jpg

AES2001 | 8 x GE, 2 x GE, 2 x GE SFP

Model:AES2001

Product Highlights

Compatible with mainstream AP and IPC devices

Supports Static Routing, MSTP, QoS and ACL

Wide Temp Operation: 0°C to 40°C

Managed via Web GUI, CLI & ACC/ACN Platform
