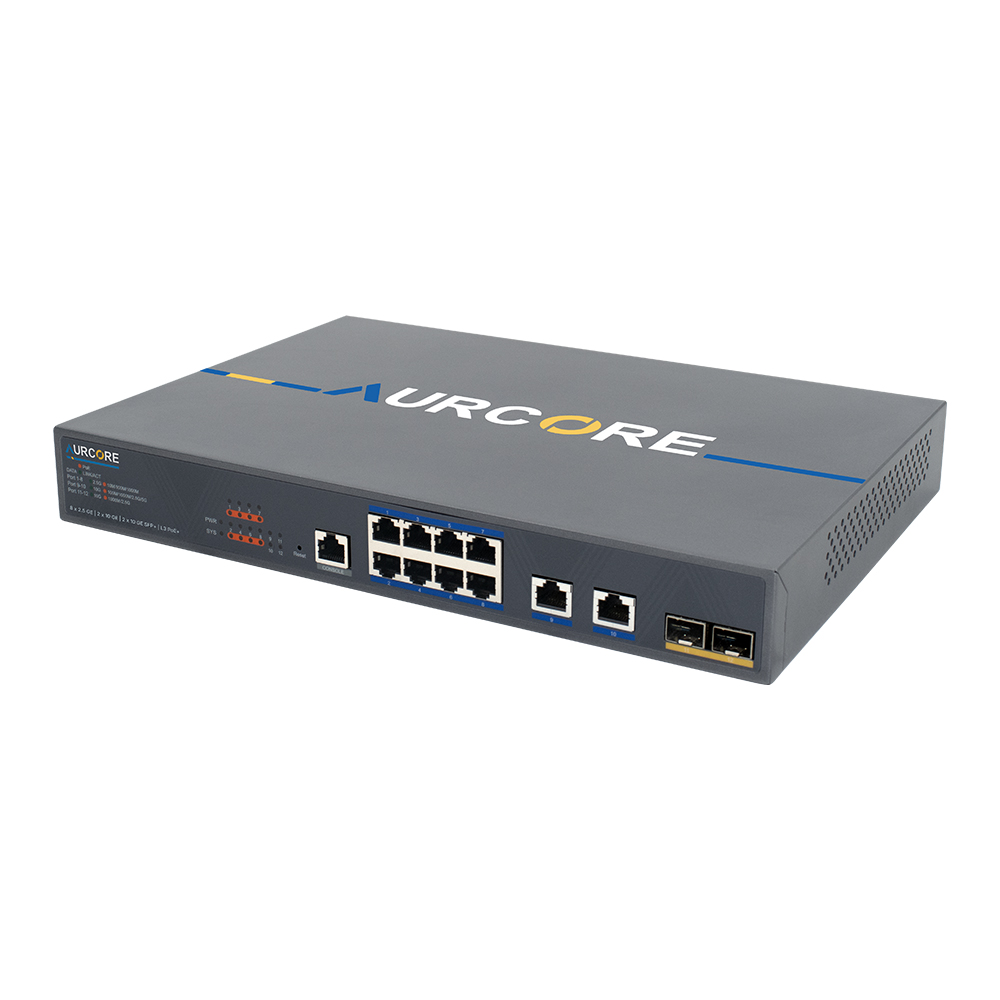

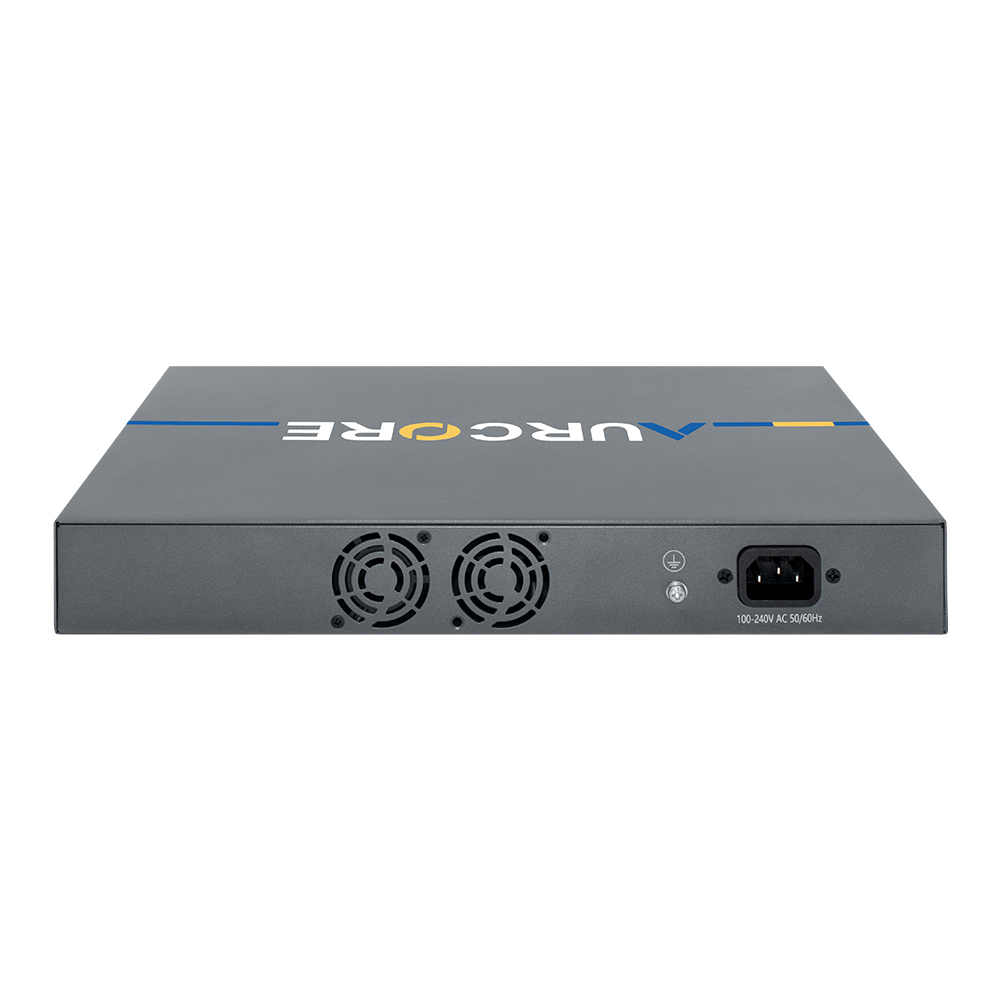

AES4101P | 8 x 2.5 GE, 2 x 10 GE, 2 x 10 GE SFP+, L3 PoE+

Overview
The AES4101P is a robust, enterprise-grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and centralized control through AURC-NOS using ACC & ACN platforms.

Whether deployed in structured enterprise settings, the AES4101P delivers consistent performance, simplified wiring, and resilient operation. Its PoE+ capabilities, surge protection, and flexible uplink options make it a versatile backbone for powering and connecting critical devices across distributed infrastructures.

Specifications
Spec
Detail
Interface
8 x 2.5 GE | 2 x 10 GE | 2 x 10 GE SFP+ | L3 PoE+
Management Port
1 x Console Port
Chipset
Realtek
Mac Address Table
16 K
Packet Forwarding Rate
89.28 Mpps
Switching Capacity
120 Gbps
Flash
32 MB
Memory
512 MB
PoE Standard
IEEE 802.3af/at
Power Supply
180 W
Power Consumption
Idling：115Vac/60Hz  13.6W
Idling：230Vac/50Hz  13.5W
Full load：115Vac/60Hz  192.3W
Full load：230Vac/50Hz  187.3W
PoE Budget
150 W
Operating Temperature
0 °C – 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C – 70 °C (-40 °F to 158 °F)
Surge Protection
Differential mode ±2KV, Common mode ±4KV
Electrostatic Standards
Contact ±6KV, Air ±8KV
Dimension(L*W*H)
12.99" × 9.06" × 1.73" (1U Height)
Installation
Rack Mount or Desktop Mount
Accessories
Rack Mount Kit *2, Rubber Feet *4, Screw *8,
Console Cable *1, Power Cord *1

Certifications
