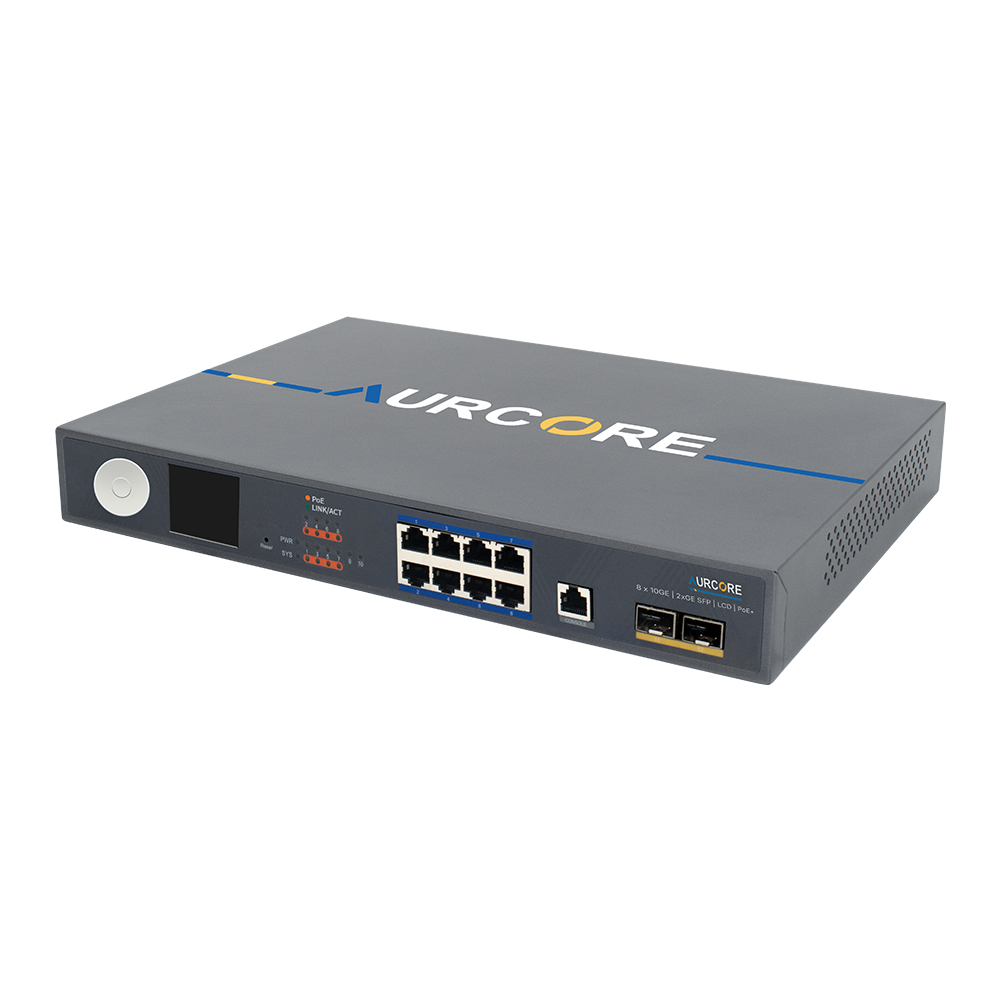

AES2010P | 8 x GE, 2 x GE SFP, LCD, PoE+

Overview
The AES2010P is a robust, enterprise-grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and centralized control through AURC-NOS using ACC & ACN platforms.

Featuring an intuitive LCD for real-time monitoring of PoE status, bandwidth, and port loads, along with CCTV function for PoE transmission and intelligent control, the AES2010P offers versatile PoE+ support, surge protection, and flexible uplinks

Specifications
Spec
Detail
Interface
8 x GE | 2 x GE SFP | LCD | PoE+
Management Port
1 x Console Port
Chipset
Realtek
Mac Address Table
8 K
Packet Forwarding Rate
14.88 Mpps
Switching Capacity
20 Gbps
Flash
32 MB
Memory
128 MB
PoE Standard
IEEE 802.3af/at
Power Supply
150 W
PoE Budget
140 W
Operating Temperature
0 °C – 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C – 70 °C (-40 °F to 158 °F)
Surge Protection
Differential mode ±4KV, Common mode ±6KV
Electrostatic Standards
Contact ±6KV, Air ±8KV
Dimension(L*W*H)
11.02" × 7.09" × 1.73" (1U Height)
Installation
Rack Mount or Desktop Mount
Accessories
Rack Mount Kit *2, Rubber Feet *4, Screw *8,
Console Cable *1, Power Cord *1

Certifications
