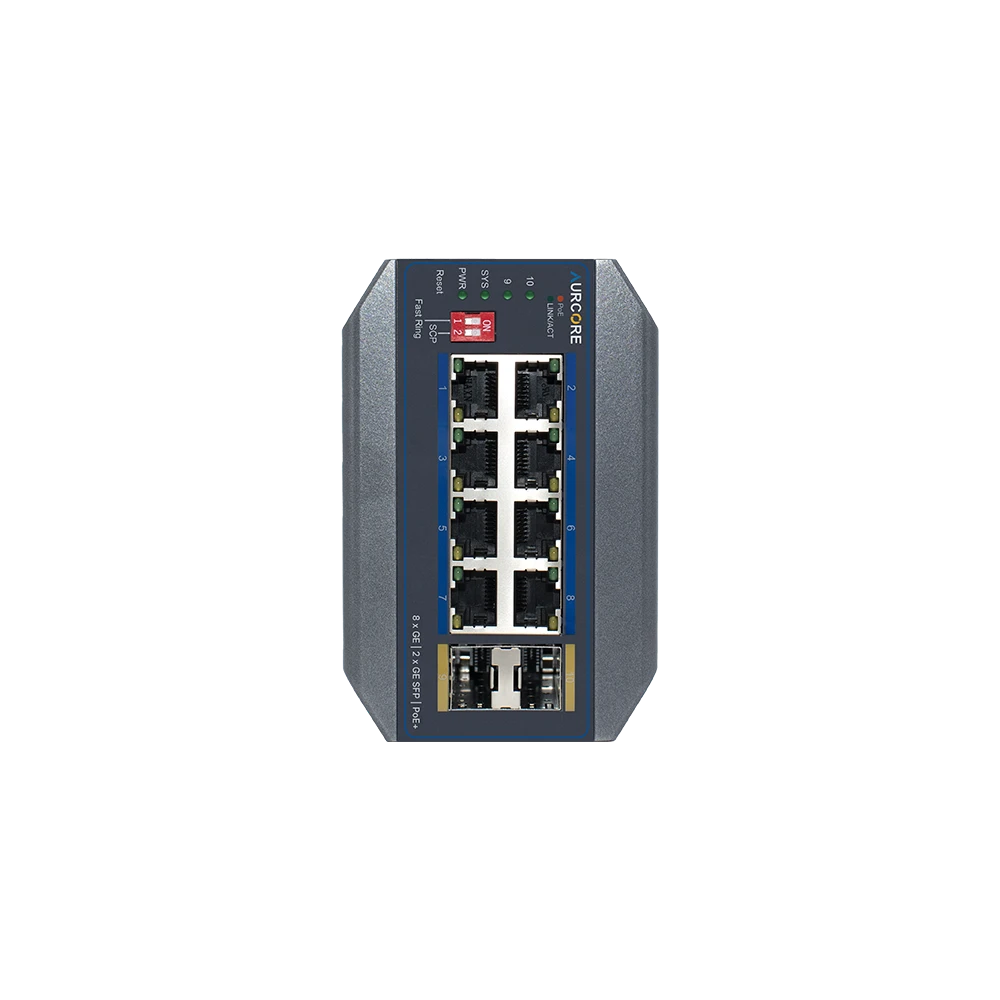

AIS2002P | 8 x GE, 2 x GE SFP, PoE+

Overview
The AIS2002P is a compact, industrial-grade Layer 2+ managed switch engineered for high-performance networking in demanding environments. It simplifies deployment in applications such as surveillance and loT/lloT wireless access by supporting Power over Ethernet (PoE+), reducing cabling complexity and installation costs. Additional capabilities include dual power input support, integrated lightning and ESD protection, and versatile management options via Console, SSH, and Web interfaces using AURC-NOS ACC/ACN. ldeal for industrial automation, transportation infrastructure, and outdoor deployments, the AIS2002P delivers robust connectivity with streamlined integration.

Specifications
Spec
Details
Interface
8 x GE | 2 x GE SFP | PoE+
Management Port
1 x Console Port
Chipset
Realtek
Mac Address Table
8 K
Forwarding Rate
14.88 Mpps
Switching Capacity
20 Gbps
Flash
32 MB
Memory
128 MB
PoE Standard
IEEE 802.3af/at
Power Supply
DC:48-57 V
Power Consumption
Idling：48V  2.21W
Idling：57V  2.05W
Full load：48V  128.21W
Full load：57V  125.38W
PoE Budget
120 W
Operating Temperature
−40 °C – 75 °C (−40 °F – 167 °F)
Storage Temperature
−40 °C – 80 °C (−40 °F – 176 °F)
Surge Protection
Differential mode ±2KV, Common mode ±6KV
Electrostatic Standards
Contact ±6KV, Air ±8KV
Dimensions (L x W x H)
4.33" x 3.66" x 2.84" (110 x 93 x 72mm)
Installation
DIN-rail Mount or Rack mount
Accessories
Phoenix Terminal*2, Console Cable*1

Certifications
