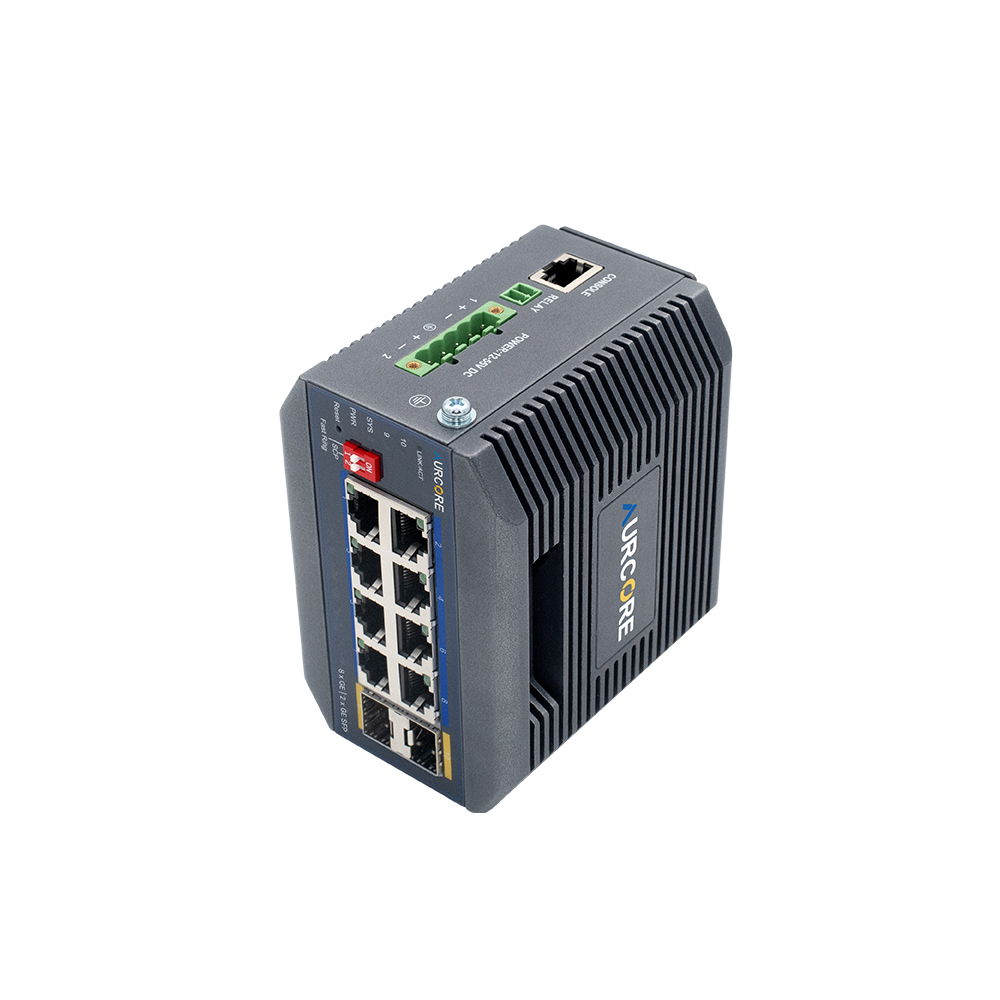

AIS2002 | 8 x GE, 2 x GE SFP

Overview
The AIS2002 is a compact, industrial-grade Layer 2+ managed switch featuring 8×10/100/1000Mbps RJ45 ports and 2×1Gbps SFP slots for flexible uplink connectivity. Designed for reliable performance in harsh environments, it supports an operating temperature range of -40°C to 75°C and is enclosed in a fanless, all-aluminum housing for excellent heat dissipation and corrosion resistance. The switch supports static routing, VLAN, QoS, and ring protection protocols such as STP, RSTP, MSTP, and ERPS, delivering network resilience and fast recovery in critical applications. With features including dual power input support, lightning and ESD protection, and multiple management interfaces via Console, Telnet, SSH, and Web, the AIS2002 is ideal for industrial automation, smart city infrastructure, and edge deployments.

Specifications
Spec
Details
Interface
8 x GE | 2 x GE SFP
Switching Capacity
20 Gbps
Management Port
1 x Console Port
Chipset
Realtek
Mac Address Table
8 K
Forwarding Rate
14.88 Mpps
Switching Capacity
20 Gbps
Flash
32 MB
Memory
128 MB
Power Supply
DC:12-55 V
Operating Temperature
−40 °C – 75 °C (−40 °F – 167 °F)
Storage Temperature
−40 °C – 80 °C (−40 °F – 176 °F)
Surge Protection
Differential mode ±2KV, Common mode ±4KV
Electrostatic Standards
Contact ±6KV, Air ±8KV
Dimensions (L x W x H)
4.33" x 3.66" x 2.84" (110 x 93 x 72 mm)
Installation
DIN-rail Mount or Rack mount
Accessories
Phoenix Terminal*2, Console Cable*1

Certifications
