32 x 100GE QSFP28, AURC-NOS, SONiC, 3 Years Warranty
overview

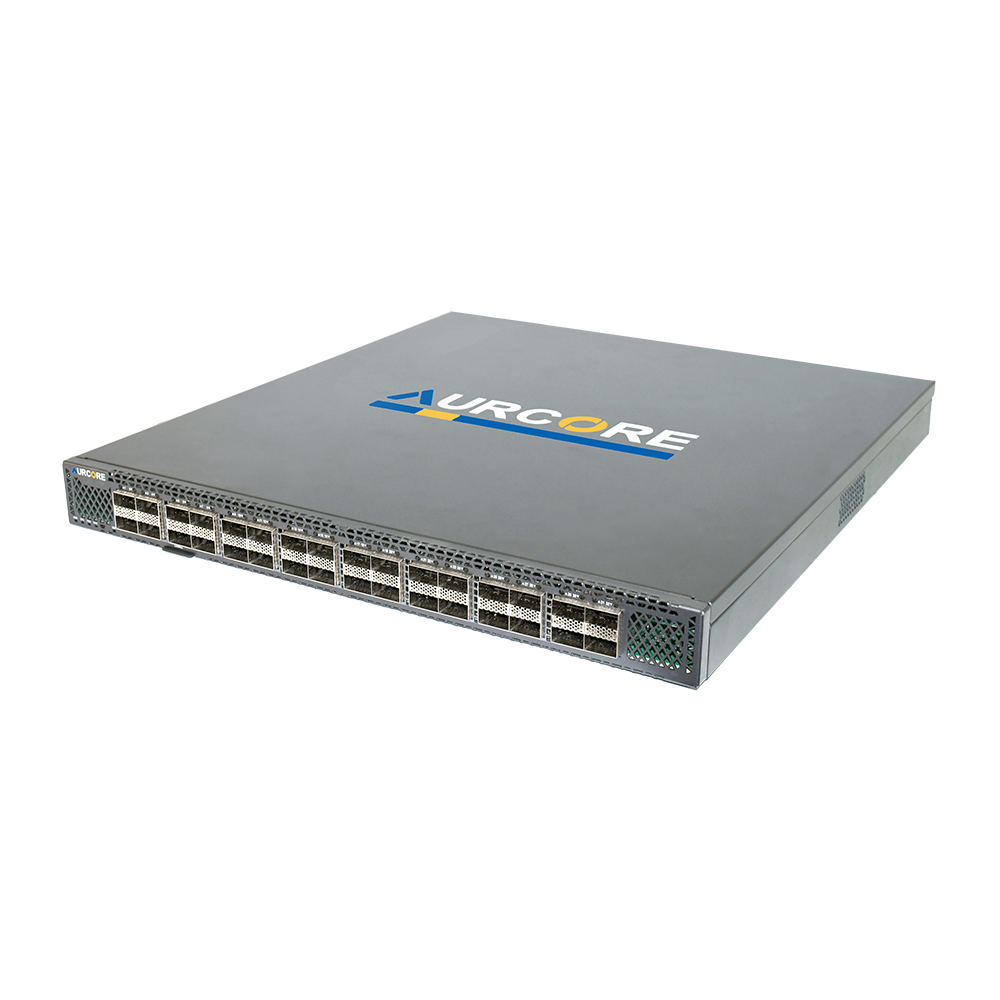

The AES6201 delivers high-throughput, lowlatency switching optimized for spine-layer deployments in modern data centers. Its space-efficient 1 RU form factor supports line-rate Layer 2 and Layer 3 switching across 32 x 100GE QSFP28 ports.
Pre-loaded with the Open Network Install Environment (ONIE), the AES6201 enables flexible installation of industry-standard Network Operating Systems, including both open-source platforms such as SONiC and commercial NOS solutions for enterprisegrade functionality.
Specifications
Spec Details Interface 32 x 100G QSFP28 Management Port 1 x MGMT Port, 1 x Console Port, 1 x USB Port (USB 2.0) Chipset Marvell Switching Capacity 6.4 Tbps Forwarding Rate 2800 Mpps Flash Memory 8 GB AC Input Rated voltage range: 100~240 V
Maximum voltage range: 90~264 V
Frequency: 50~60 Hz
Rated input current: 5~10 ADC Input Input voltage range: 180~310V

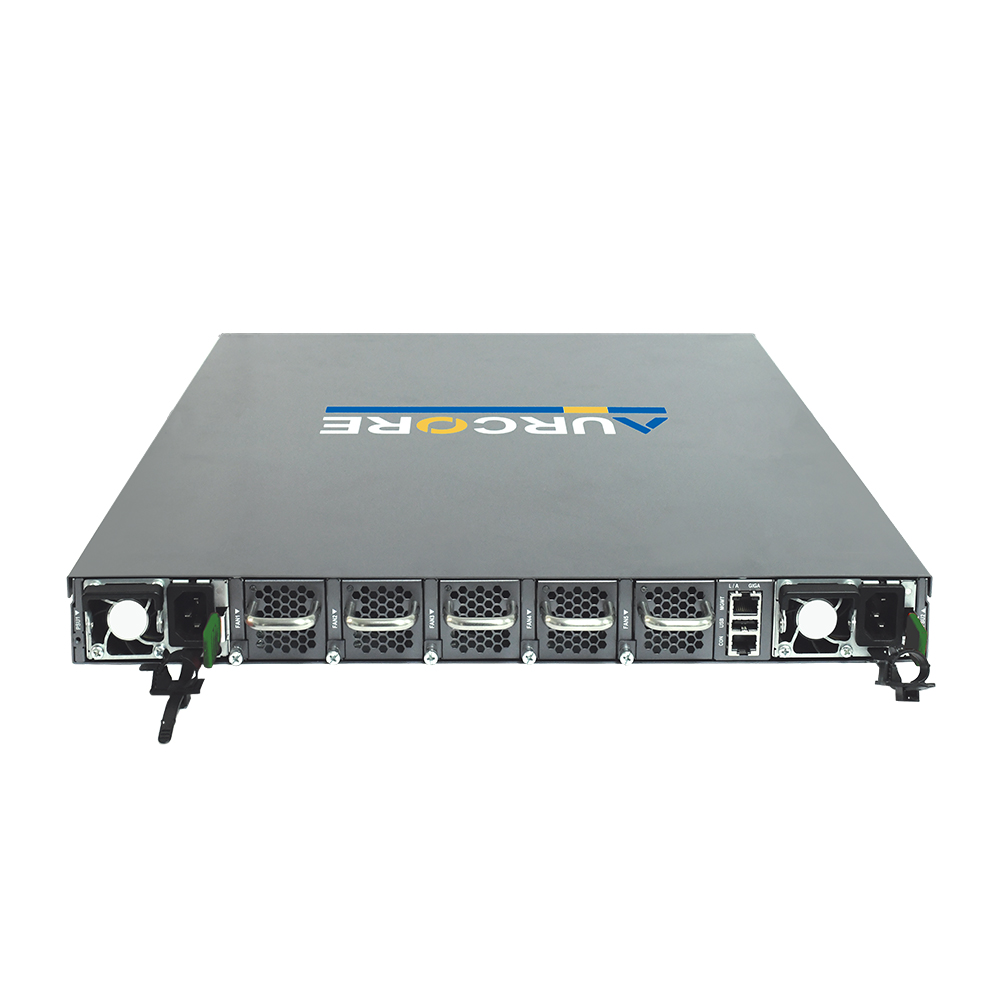

Input current range: 5 AFan 5 hot-swappable fan modules for front/rear ventilation Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Power Supplies 2 (1+1 Redundancy), Hot-swappable Power Consumption Static (Dual AC): 173 W Maximum (Dual AC): 512 W Dimensions (L x W x H) 18.50" (L) × 17.32" (W) × 1.73" (H) / 1U height Full Weight 11kg / 24.25 lbs. Installation Rack Mount Accessories Mounting Bracket*2, Screw*6, Grounding Cable*1,
Grounding Screw*1, Console Cable*1, Power Cord*2
