48 x 25GE SFP28, 8 x 100GE QSFP28, AURC-NOS, SONiC, 3 Years Warranty
overview

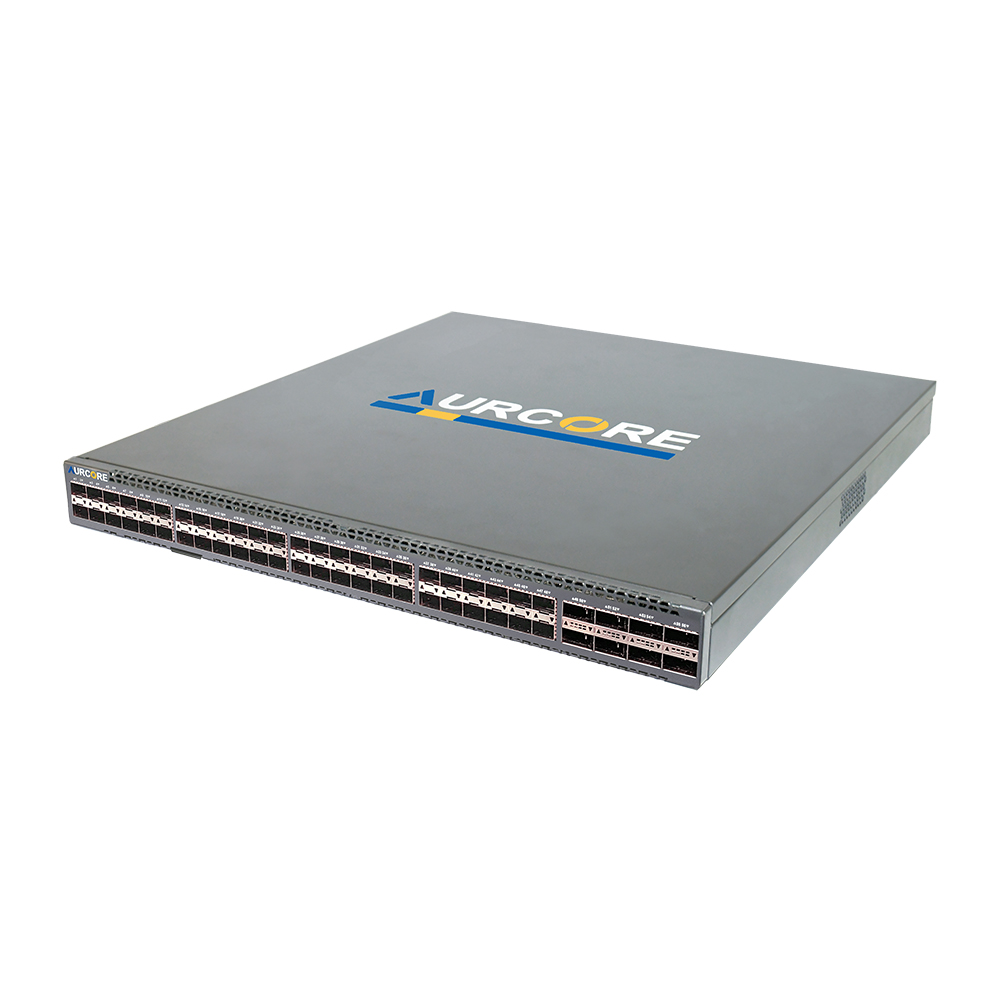

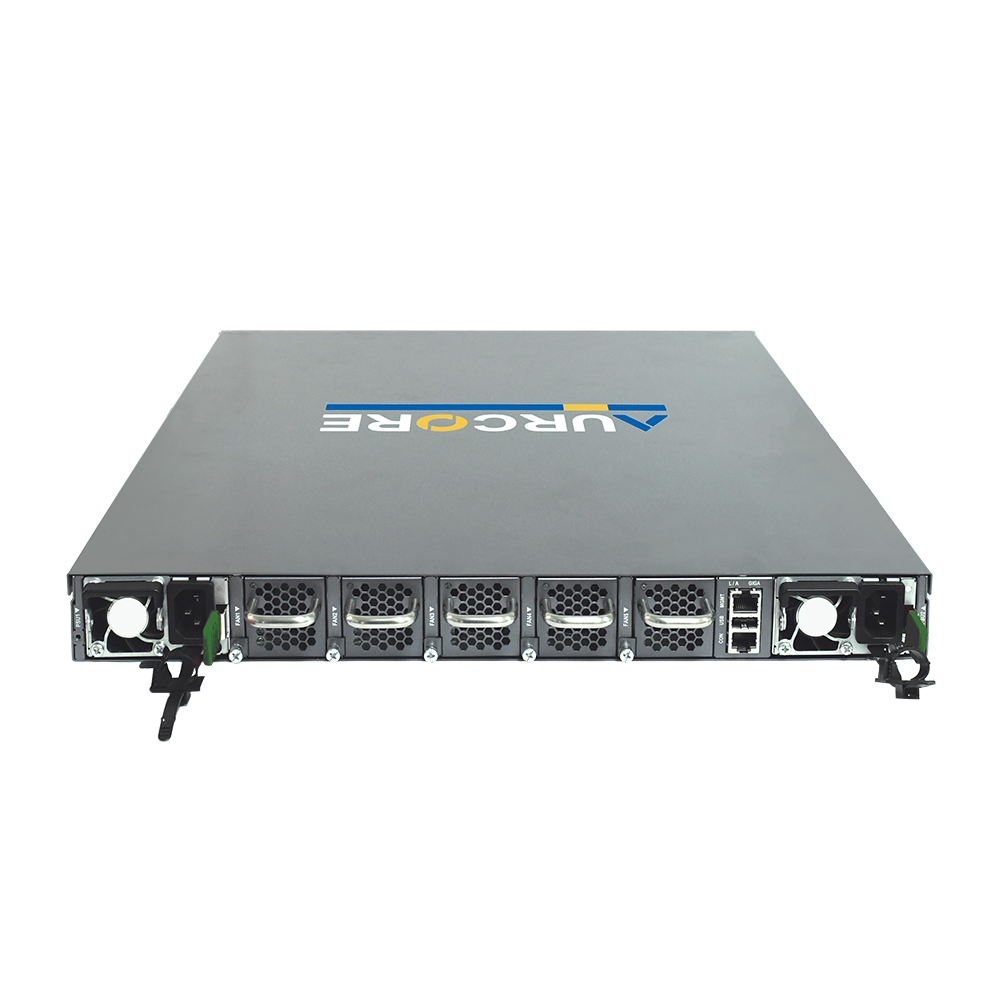

The AES6102 is a high-density Layer 3 data center switch featuring 48×25GE SFP28 ports and 8×100GE QSFP28 uplinks, with full backward compatibility to 10GE and 40GE, respectively. It is engineered for large-scale data center access and aggregation, delivering flexible deployment options and high-throughput performance. Equipped with 1+1 redundant power supplies and 4+1 hot-swappable fans, the switch ensures uninterrupted business continuity and efficient thermal management through its front-to-back airflow design.
With support for VXLAN, EVPN, and MLAG, the AES6102 enables scalable multi-tenant network architectures and seamless Layer 2/Layer 3 virtualization.In addition to full-featured Layer 2/3 routing protocols—including OSPF, BGP, IS-IS, and MPLS—the switch supports hardware-based traffic visibility via sFlow and RSPAN, helping operators gain real-time insights into network behavior. It also features dual-stack IPv4/IPv6 routing, BFD fast detection, and rich redundancy protocols like ERPS and VRRP for maximum network stability. Designed with a robust security framework including ACLs, ARP inspection, CPU protection, and SSH/SSL encryption, the AES6102 is built for demanding data center environments. Its multi-interface management (CLI, Web UI, SNMP, Telnet, USB) provides flexible and secure control for enterprise and hyperscale applications.
Specifications
| Spec | Details |
|---|---|
| Interface | 48 × 25GE SFP28 Slots, 8 × 100GE QSFP28 Slots |
| Management Port | 1 × MGMT Port, 1 × Console Port, 1 × USB Port (USB 2.0) |
| Chipset | Marvell |
| Packet Forwarding Rate | 2800 Mpps |
| Switching Capacity | 6.4 Tbps |
| System Memory | 8 GB |
| Fan | 5 hot-swappable fan modules for front/rear ventilation |
| Power Supply | 2 (1+1 Redundancy), Hot-swappable |
| AC Input | Rated voltage range: 100~240 V Maximum voltage range: 90~264 V Frequency: 50~60 Hz Rated input current: 0~5 A(230VAC); 0~10 A(100VAC) |
| DC Input | Input voltage range: 180~310 V Input current range: 0~5 A |
| Power Consumption | Static (Dual AC): 145 W Maximum (Dual AC): 445 W |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Dimensions (L x W x H) | 17.32”(L) × 18.50“ (W) × 1.73"(H) / 1U height |
| Full Weight | 11 kg / 24.25 lbs. |
| Installation | Rack Mount |
| Accessories | Mounting Bracket*2, Screw*6, Grounding Cable*1, Grounding Screw*1, Console Cable*1, Power Cord*2 |
