AES6101 | 48 x 25G SFP28, 6 x 100G QSFP28

Overview

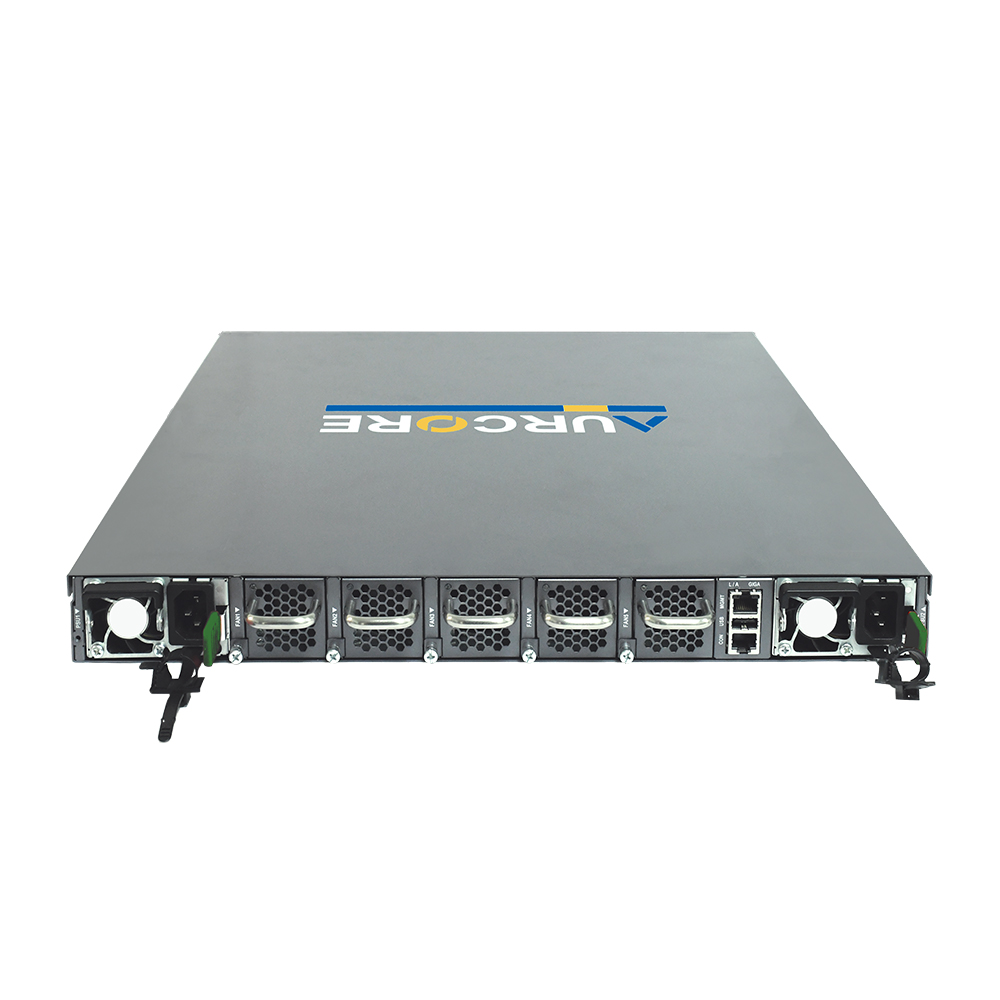

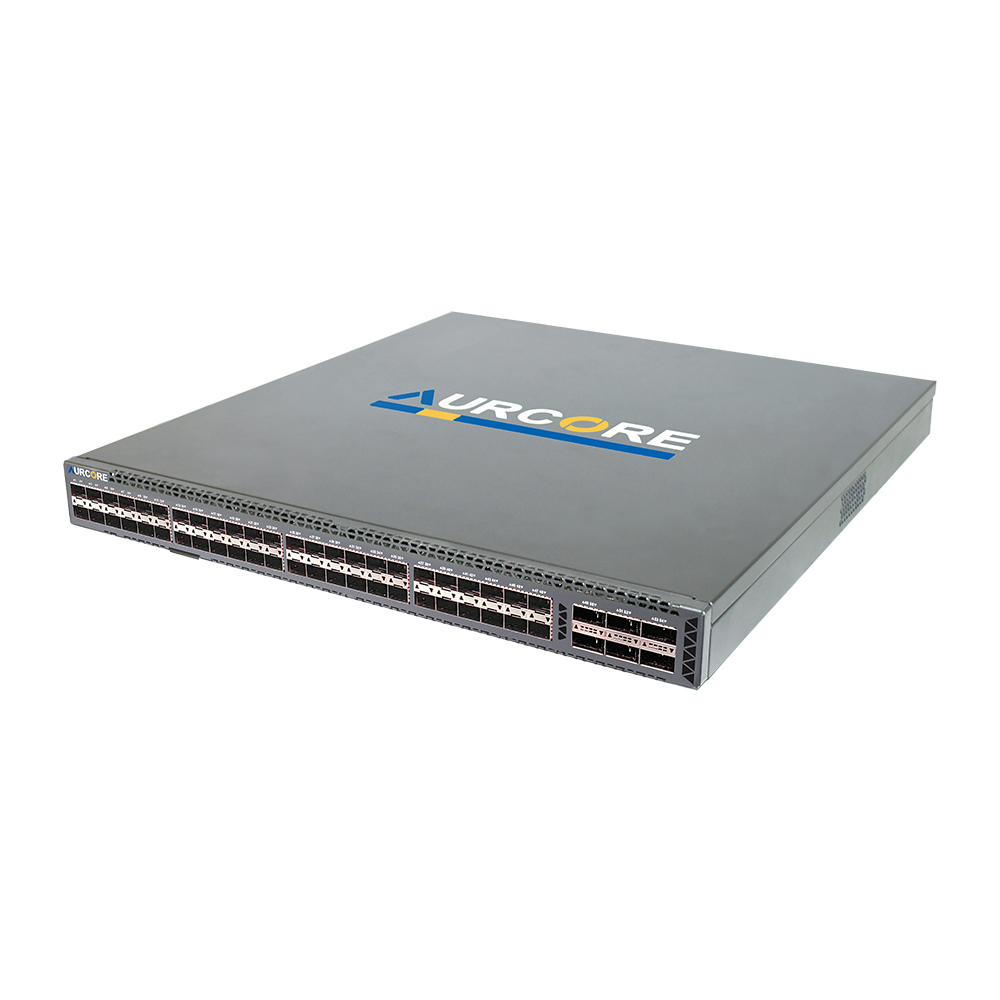

The AES6101 is a high-performance Layer 3 data center switch featuring 48×25GE SFP28 ports and 6×100GE QSFP28 uplinks, offering full backward compatibility with 10GE and 40GE interfaces. Designed for top-of-rack and aggregation deployments in high-density data center environments, the switch delivers exceptional bandwidth, flexibility, and port scalability. It is equipped with 1+1 redundant power supplies and 4+1 hot-swappable fans, ensuring continuous operation and efficient front-to-back airflow for optimal heat dissipation.

With support for VXLAN, EVPN, and MLAG, the AES6101 enables agile network virtualization and scalable multi-tenant architectures across modern Layer 2/Layer 3 infrastructures.The switch supports a full suite of Layer 2/3 routing protocols—including OSPF, BGP, IS-IS, and MPLS—along with hardware-based traffic visualization through sFlow and RSPAN. It is built with IPv4/IPv6 dual-stack support, BFD fast failure detection, and redundancy protocols such as ERPS and VRRP to enhance network reliability and resilience. Security features include role-based access control, CPU protection, ACLs, ARP inspection, and encrypted management via SSH and SSL. Combined with flexible management interfaces like CLI, Web UI, SNMP, and USB, the AES6101 offers scalable, secure, and efficient network control for modern data centers.

Specifications
Spec
Details
Interface
48×25GE SFP28 Slots + 6×100GE QSFP28 Slots
Management Port
 1 × MGMT Port, 1 × Console Port, 1 × USB Port (USB 2.0)
Chipset
Marvell
Packet Forwarding Rate
1050 Mpps
Switching Capacity
3.6 Tbps
System Memory
8 GB
Fan
5 hot-swappable fan modules for front/rear ventilation
Power Supply
2 (1+1 Redundancy), Hot-swappable
AC Input
Rated voltage range: 100~240 V
Maximum voltage range: 90~264 V
Frequency: 50~60 Hz
Rated input current: 0~3.5 A(230VAC); 0~7 A(100VAC)
DC Input
Input voltage range: 180~310 V
Input current range: 0~3.5 A
Power Consumption
Static (Dual AC): 85 W     Maximum (Dual AC): 375 W
Operating Temperature
0 °C  to  40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C  to  70 °C (-40 °F to 158 °F)
Dimensions (L x W x H)
18.50" (L) × 17.32" (W) × 1.73" (H) / 1U height
Full Weight
11 kg / 24.25 lbs.
Installation
Rack Mount
Accessories
Mounting Bracket*2, Screw*6, Grounding Cable*1,
Grounding Screw*1, Console Cable*1, Power Cord*2
