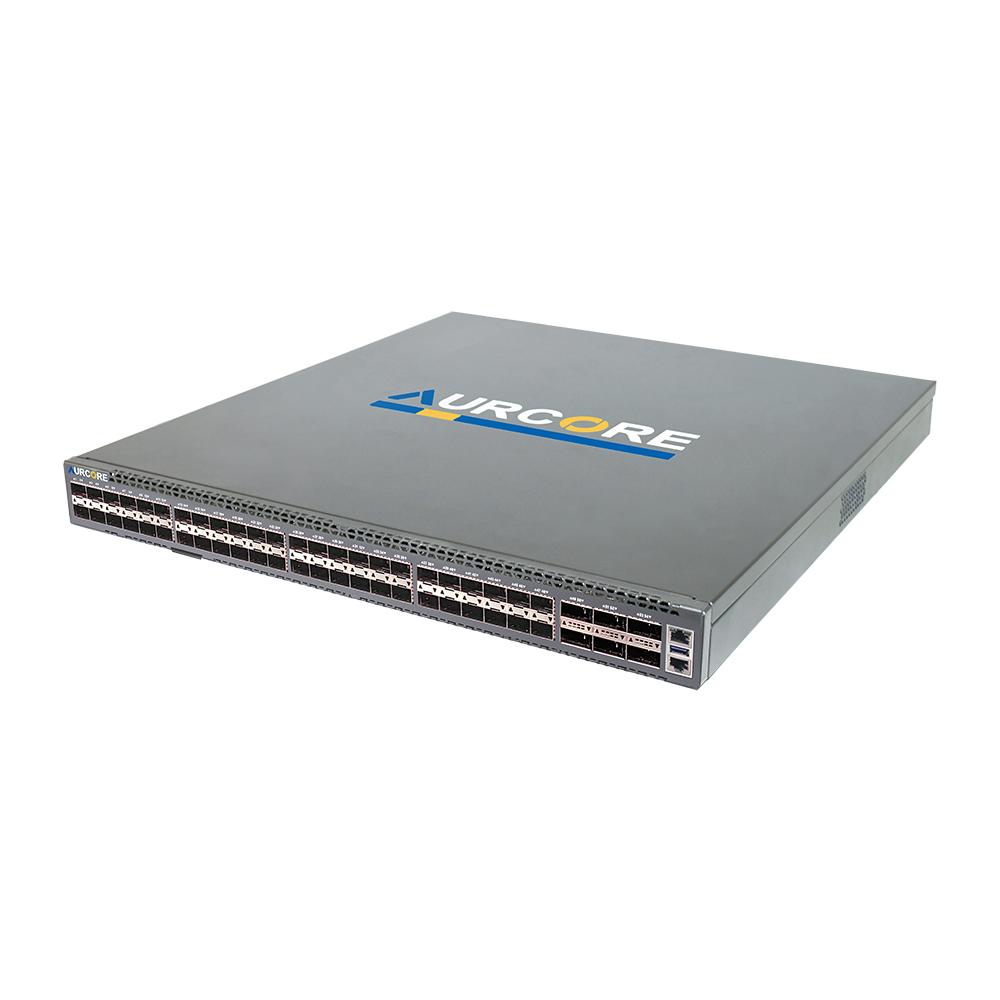

AES6002 | 48 x 10G SFP+, 6 x 100G QSFP28

Overview

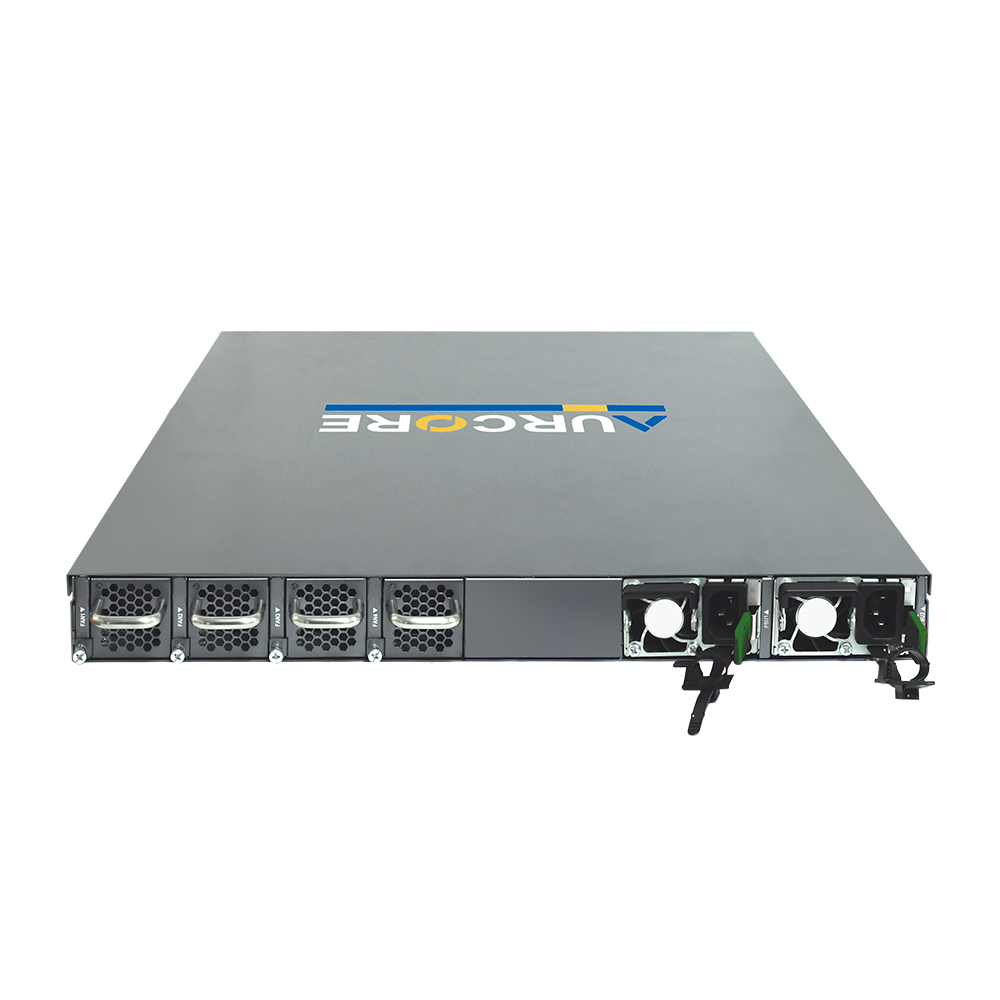

The AES6002 is a high-performance Layer 3 Ethernet switch equipped with 48×10GE SFP+ ports and 6×100GE QSFP28 uplinks, designed to meet the high-density access and aggregation demands of next-generation data center networks. The 100G ports are backward compatible with 40GE, allowing for flexible deployment in mixed-speed environments. The switch features 1+1 redundant power supplies and 3+1 hot-swappable fans, delivering continuous uptime and front-to-back airflow for efficient cooling.

With support for VXLAN, EVPN, and MLAG, the AES6002 provides scalable Layer 2/3 virtualization and robust multi-tenant isolation capabilities.Built for advanced enterprise and cloud-scale deployments, the switch supports full Layer 2/3 routing protocols—including OSPF, BGP, IS-IS, and MPLS—alongside hardware-based traffic monitoring with sFlow and RSPAN. Its dual-stack IPv4/IPv6 architecture, BFD link fault detection, and redundancy protocols such as ERPS and VRRP ensure high network stability and resiliency. The AES6002 also incorporates comprehensive security features including ACLs, ARP protection, CPU safeguarding, and SSH/SSL encrypted management. Multiple access options—CLI, Web UI, SNMP, Telnet, and USB—make it easy to integrate and manage in diverse data center environments.

Specifications
Spec
Details
Interface
48 × 10GE SFP+ Slots + 6 × 100GE QSFP28 Slots
Management Port
1 × MGMT Port, 1 × Console Port, 1 × USB Port (USB 2.0)
Chipset
Marvell
Packet Forwarding Rate
600 Mpps
Switching Capacity
2.18 Tbps
System Memory
4 GB
Fan
4 hot-swappable fan modules for front/rear ventilation
Power Supply
2 (1+1 Redundancy), Hot-swappable
AC Input
Rated voltage range: 100~240 V
Maximum voltage range: 90~264 V
Frequency: 50~60 Hz
Rated input current: 0~2.5 A(230VAC); 0~5 A(100VAC)
DC Input
Input voltage range: 180~310 V
Input current range: 0~2.5 A
Power Consumption
Static (Dual AC): 60 W     Maximum (Dual AC): 285 W
Operating Temperature
0 °C  to  40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C  to  70 °C (-40 °F to 158 °F)
Dimension (L×W×H)
16.14" (L) × 17.32"(W) × 1.73"(H) / 1U height
Full Weight
9.5 kg / 20.94 lbs
Installation
Rack Mount
Accessories
Mounting Bracket*2, Screw*6, Grounding Cable*1
Grounding Screw*1, Console Cable*1, Power Cord*2
