AES6001 | 24 x 10G SFP+, 6 x 100G QSFP28

Overview

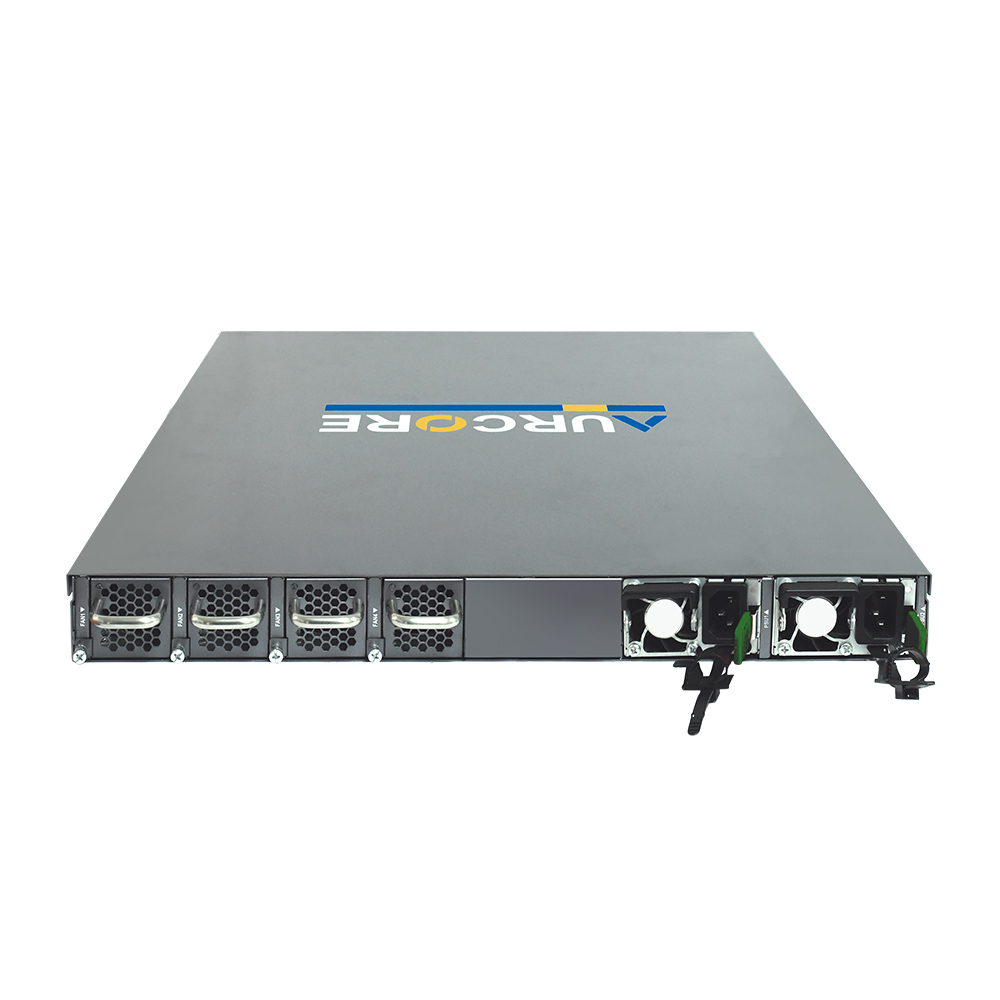

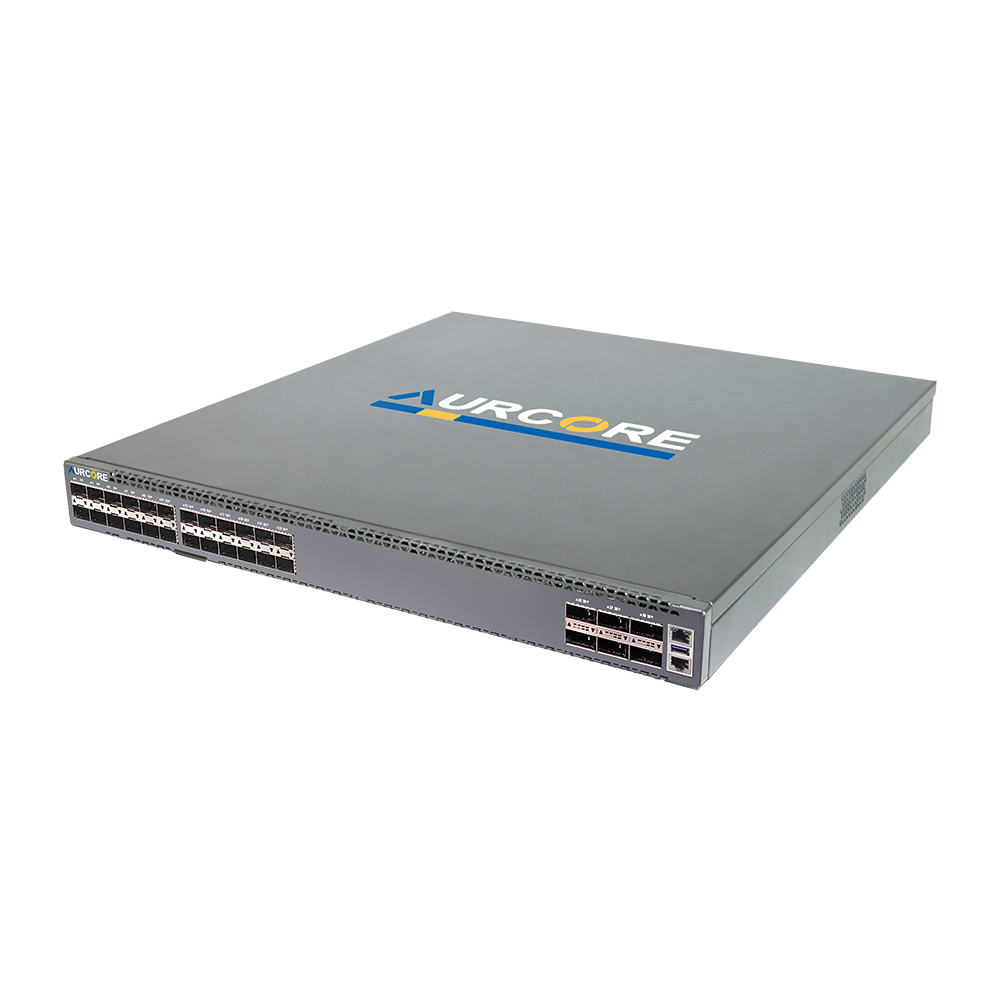

The AES6001 is a compact, high-performance Layer 3 Ethernet switch featuring 24×10GE SFP+ ports and 6×100GE QSFP28 uplinks, with the 100GE interfaces offering backward compatibility to 40GE. Tailored for high-density access and aggregation in modern data centers, this switch delivers the flexibility and throughput required for evolving workloads. Designed with 1+1 redundant power supplies and 3+1 hot-swappable fans, it ensures business continuity and efficient front-to-back airflow, supporting energy-efficient operations in high-demand environments. With VXLAN, EVPN, and MLAG capabilities, the AES6001 enables scalable, virtualized Layer 2/3 deployments in multi-tenant architectures.

Supporting full-featured Layer 2/3 routing protocols—including OSPF, BGP, IS-IS, and MPLS—this switch also provides hardware-based traffic visibility via sFlow and RSPAN. With IPv4/IPv6 dual-stack support, fast failure detection through BFD, and link redundancy via ERPS and VRRP, the AES6001 ensures network resilience and responsiveness. Its built-in security framework includes ACLs, ARP inspection, CPU protection, and SSH/SSL encryption. Flexible management through CLI, Web UI, SNMP, Telnet, and USB makes the switch easy to configure and operate in enterprise and cloud-scale data center environments.

Specifications
Spec
Details
Interface
24 × 10GE SFP+ Slots + 6 × 100GE QSFP28 Slots
Management Port
1 × MGMT Port, 1 × Console Port, 1 × USB Port (USB 2.0)
Chipset
Marvell
Packet Forwarding Rate
600 Mpps
Switching Capacity
1.7 Tbps
System Memory
4 GB(ECC)
Fan
4 hot-swappable fan modules for front/rear ventilation
Power Supply
2 (1+1 Redundancy), Hot-swappable
AC Input
Rated voltage range: 100~240 V
Maximum voltage range: 90~264 V
Frequency: 50~60 Hz
Rated input current: 0~2.5 A(230VAC); 0~5 A(100VAC)
DC Input
Input voltage range: 180~310 V
  Input current range: 0~2.5 A
Power Consumption
Static (Dual AC): 51 W     Maximum (Dual AC): 225 W
Operating Temperature
0 °C  to  40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C  to  70 °C (-40 °F to 158 °F)
Full Weight
9.0 kg / 19.84 lbs
Dimension (L×W×H)
16.14"(L) × 17.32"(W) × 1.73"(H) / 1U height
Installation
Rack Mount
Accessories
Mounting Bracket*2, Screw*6, Grounding Cable*1,
Grounding Screw*1, Console Cable*1, Power Cord*2
